Medical Equipment

Medical Products

Quality, reliability and precision is imperative when it comes to medical applications. This creates a need for solutions that provide secure and reliable equipment's to hospitals and clinics and health care providers at every stage. Elma's trusted application ready systems for imaging, surgical and therapy systems, patient monitoring, IT and patient diagnostics enable our customers to accelerate. Our wide range of hardware products are used by leading medical OEMs and integrators.

Our application-ready platforms are based on proven open standards, reducing design risk as well as significant cost reductions. Elma’s enclosures can be easily tailored to perfectly fit the electronics and provide a unique look. The modular design enables the customization with reduced R&D, time and costs. Our high-performance knobs and switches are used in the world over for their superior design and reliability.

Power Supplies

Rotary Switches

Enclosures & Components

Medical Power Supplies

As a trusted distribution partner for power supply solutions, Elma Electronic delivers both standardized and customized systems designed to meet the critical demands of hospitals and clinics. Our extensive expertise ensures reliable performance across a wide range of medical applications, including AC/DC power supplies, DC/DC converters, and DC/AC inverters. Whether for diagnostic equipment, monitoring systems, or other essential medical devices, Elma provides power solutions that meet the highest standards of safety, efficiency, and reliability.

Converter

  • Power density
  • Reliability (MTBF)EMC requirement
  • Class I and Class IIMOOP - Means of Operator
  • MOOP - Means of Operator Protection
  • MOPP - Means of Patient Protection
  • ISO13485 (quality requirements)
  • IEC / EN60601 (safety requirements

DC/DC converter

  • 3.5 W in DIP24 SMD case
  • DIP24 SMD case2 MOPP
  • 6kVDC / 1s isolation
  • > 8 mm creepage and clearance
  • -40 to +85 °C no derating
  • EN60601-1-2 medical certification

DC/DC converter

  • From 0.25 to 30 W
  • SMD, THT
  • Galvanically isolated
  • 2 MOPP
  • Medical safety EN60601 3rd edition
  • Medical EMV EN60601 4th edition

AC/DC converter

  • Fully modular power supply with 4 | 8
  • Individual or combinable output modules
  • 90 to 264 VAC
  • Nevo +600M
  • Nevo +1200M

Power Supplies Application Examples in the Medical Sector

Ultrasound Therapy

Versatile modular power supply for high power density and variable voltages. Meets EN60601-1 for security and isolation.

Laser Treatment

Provided with a versatile modular power supply that is compact and works with high reliability. Up to 4 individually adjustable output voltages are possible with one power supply unit. It also has full medical approval according to EN60601-1.

Medical Rotary Switches and Encoder

In medical environments where precision, reliability, and durability are essential, Elma’s rotary switches and encoders deliver proven performance. Designed with rugged stainless brass or stainless steel shafts, these components withstand demanding conditions often found in hospital and clinical settings. Each switch is panel- and shaft-sealed up to IP68, providing robust protection against dust, moisture, and cleaning agents commonly used in sterile environments. To ensure long-lasting functionality and uninterrupted operation, all electronic contacts are hard-gold plated, offering excellent conductivity and corrosion resistance. With Elma, healthcare equipment benefits from enhanced reliability and durability, essential for patient care and operational excellence.

‍

  • E18 or E33 for menu choice including push function in various configurations
  • E33 with Interface solutions for easy assembly
  • E37 with two shafts for narrow space demand4. Encoder with Hall-Sensor technology
  • Various knobs in aluminum or plastic in different colors

‍

‍

‍

‍

‍

‍

Encoder Application Examples in the Medical Sector

Ventilator

Encoder adapts the main controls of the ventilation menu with a highly customizable display including intuitive screen navigation.

VENTIlogic LS Ventillator

Incremental encoder with IP68 front panel protection and stainless steel shaft, is suitable for various environments and offers reliability and quality for a long service life.

Ventilator

Incremental encoder with IP68 front panel protection and stainless steel shaft, is suitable for various environments and offers reliability and quality for a long service life.

Medical Enclosures and Components

Our enclosures and system cases are highly modular and flexible, making them ideal for hospitals and clinics where adaptability and reliability are essential. Available in desktop, tower, 19" rack-mount, portable, and wall-mount configurations, these enclosures support a wide range of medical applications. Constructed from durable aluminum or plastic, many models offer optional EMC shielding and meet strict environmental and regulatory standards, including protection against radio frequency interference (RFI), shock, vibration, and water ingress, ensuring dependable performance in clinical and surgical environments.

iD-Box 16

High-quality enclosure with EMC protection, easy-caresurface and customer-specific dimensions.

iD-Case 18

High-quality metal enclosure in four different sizes, stackable, easy-care surface and with EMC protection.

Compact Case 20

Enclosure in many variations, all round anodized aluminum, optional EMC protection, stackable and available rugged version.

Enclosures and Components Application Examples in the Medical Sector

Swisstrace

MR compatible blood collection system. Customer-specific solution based on the iD-Case 18.

Argos Med

Enclosure for medical measuring instrument. Customer-specific solution based on the iD-Box 16.

‍

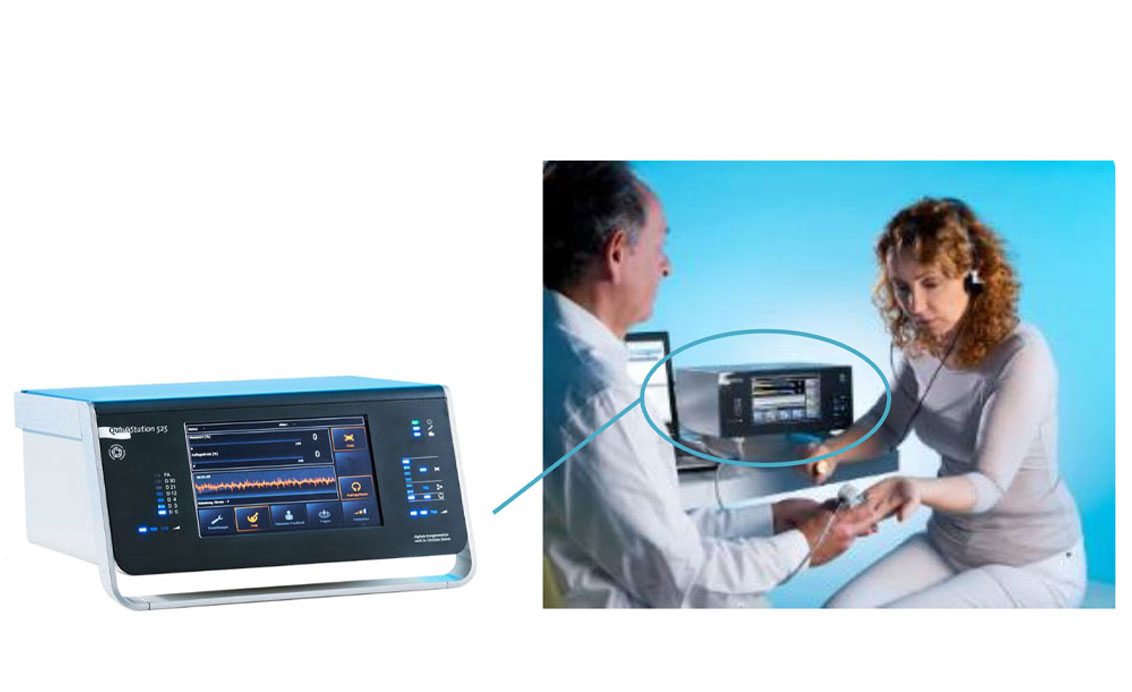

QuintStation 525

Information therapy - test and measurement device for holopathy. Customer-specific enclosure based on the iD-Box 16.
